Add Standard Tests

  1. Navigate to Administration > Devices.
  2. In the Manage Devices window, find the device for which you want to provision tests and click Tests.
  3. In the Manage Tests window click Create New Standard Tests.

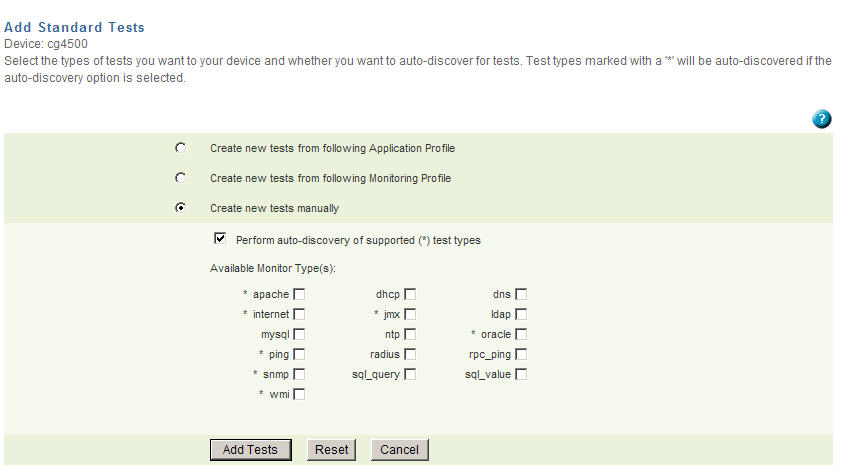

    The Add Standard Tests page displays.

    Word 80% / HTML 80%

  4. Select one of the following options:
  5. Select Perform auto-discovery of supported (*) test types if you want Traverse to auto-discover tests for monitors types designated with an asterisk (*).
  6. In the Available Monitor Types list, select the monitors that include tests that you want to provision for this device. See Available Standard Tests for the list or available monitors/tests.
  7. Click Add Tests.

All tests include one or two additional configuration pages that require you to select test subtypes and/or enter configuration settings.

If you selected Create new tests from following Application Profile in Step 4, clicking Add Tests displays (in most cases) the SNMP Test page, the WMI Test page, or both. For example, the Cisco Call Manager profile includes metrics that are collected using both SNMP and WMI. Note that you can select multiple application profiles using the Shift and Ctrl keys on your keyboard. When you click Add Tests, the test associated to each selected profile displays (as the filter for subsequent test discovery) in the Filter Tests page.

If you selected Create new tests from following Monitoring Profile in Step 4, clicking Add Tests displays test pages based on the information in the selected monitoring profile.
