Managing Hotspots

Adding a Hotspot to a Map

1. Navigate to Status > Maps.
2. Click the Overlay Maps button to see the list of available maps.
3. Click on the name of the map you want to add a device, container, or map to as a hotspot.
4. Click the Add Hotspot button.
5. Click on the Devices, Containers, or Maps tab, and then enter a regular expression into the text box and click the Search button to search for items of that type.

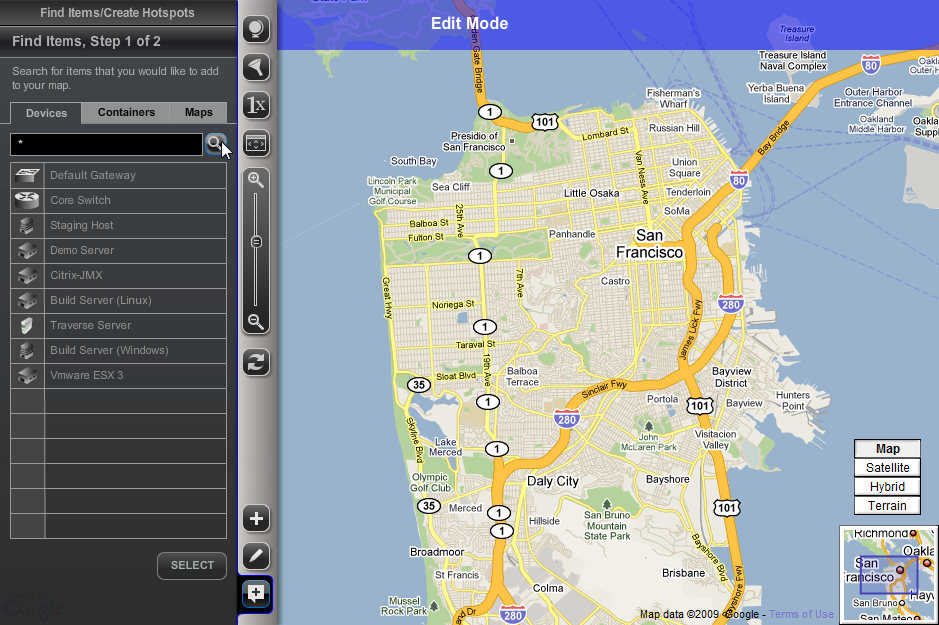

Find Items, Step 1 of 2

1. Click on the name of the item you want to add as a hotspot, and then click Select.
2. Enter a Name and, optionally, a Description for the selected item.
3. Click to select an icon to represent your hotspot from the list provided under Choose an icon.
4. Place the hotspot on the map either by dragging and dropping its icon, or by providing a street address. Click on the Enter Address tab to enter a street address.

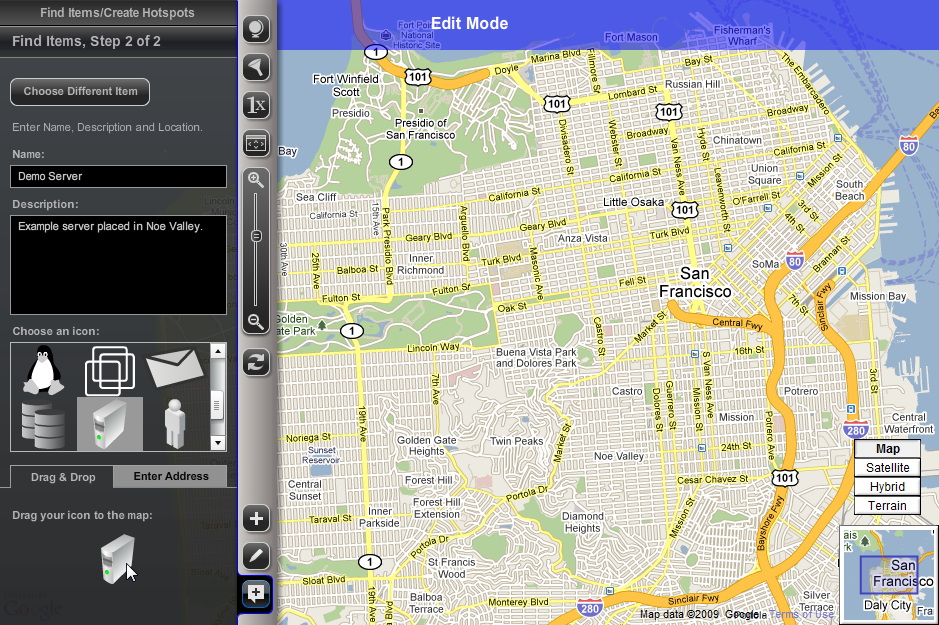

Find Items, Step 2 of 2

1. You can refine your hotspot placement by dragging and dropping the icon on the map, or by changing the location coordinates under Enter Location, and then clicking Update Marker Location.
2. Click Save Map to save your hotspot placement and exit edit mode.

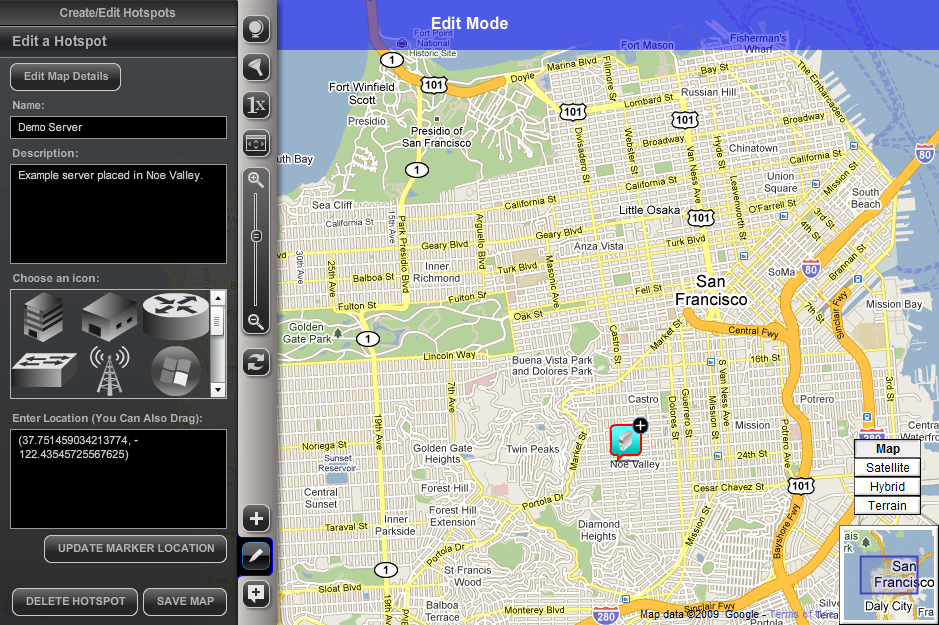

Modifying Hotspot Properties

1. From a map view, click the Edit Map button to enter edit mode.
2. Click on the hotspot icon you want to modify.
3. You can now make the following changes:
   • Modify the text in the Name and Description fields.
   • Change the location of the hotspot by dragging and dropping the icon on the map, or by changing the location coordinates under Enter Location, and then clicking Update Marker Location.
4. Click Save Map to save your changes and exit edit mode.

Deleting a Hotspot

1. From a map view, click the Edit Map button to enter edit mode.
2. Click on the hotspot icon you want to delete, and then click Delete Hotspot.
3. Click Save Map to save your changes and exit edit mode.
