Tests for device availability using two tests: Packet Loss and Round Trip Time. Entering a credential/configuration is not required for this monitor type.
Credential/Configuration Settings
Not required.

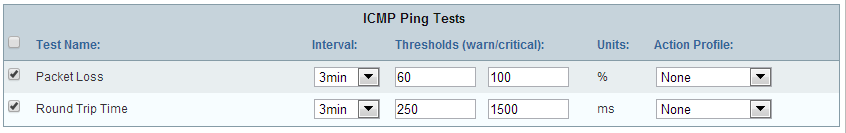

Test Parameters
Field |
Description |
Test Name |
Enter/modify the name of the test. |
Interval |
Use the drop-down menu to specify the interval at which Traverse executes the test. |
Thresholds (warn/critical) |
Enter/modify the threshold levels that cause the test to change to (a state of) Warning or Critical, respectively. |
Units |
Set to "%" (percent) for Packet Loss test and "ms" (milliseconds) for Round Trip Time test. |
Action Profile |
Use the drop-down menu to select an action profile for the test. See Administrator Configured Action Profiles and Thresholds for more information. |
