Explorer Grid

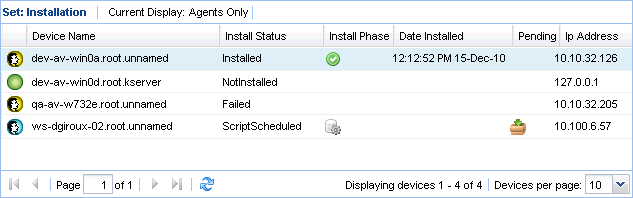

The Explorer Grid of the Machines page lists each machine currently installed with a KAM client and included in the machine ID / group ID filter.

Note: The only exception is when the Installation column set is selected. In this case all machines included the machine ID /group ID filter are displayed, whether or not the KAM client is installed.

• The set of columns displayed is determined by the Column Set selection in the Control Panel. The currently selected column set displays in the bar just above the Explorer Grid.

  Note: See KAM Columns for a description of each column available to display in any Explorer Grid column set.

• Page forward using the Page Browser to display multiple pages of machines.
• Machines per page sets the number of rows on each page.
