Logon as traverse. Navigate to the Administration > Discovery page.

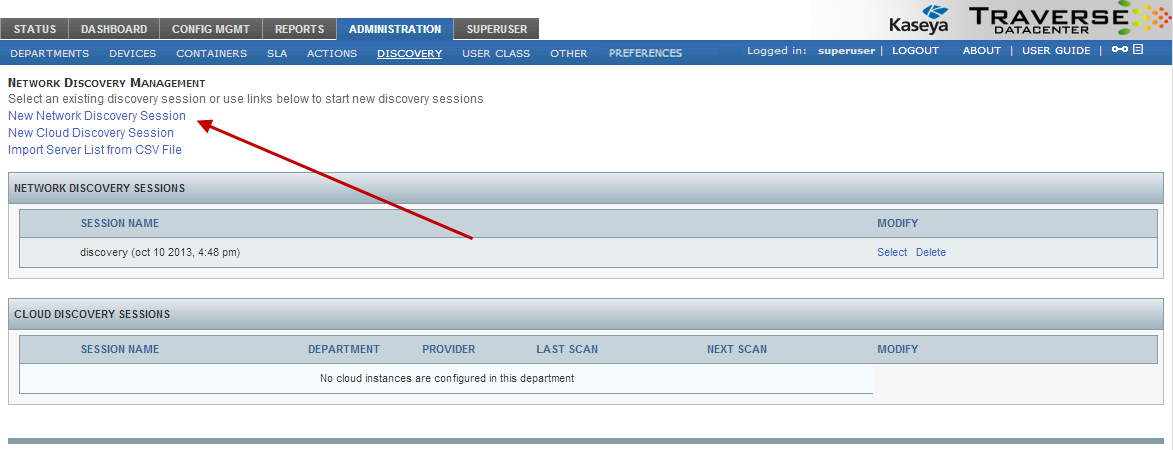

Click the New Network Discovery Session link.

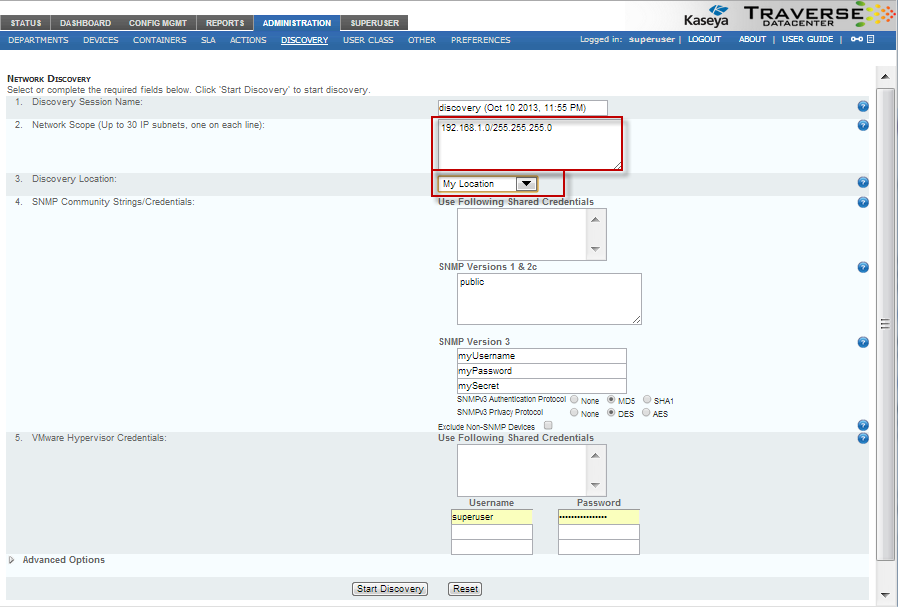

Enter the following values:
Network Scope - Enter a network subnet starting value followed by the network mask. Example: 192.168.1.0/255.255.255.0. The DGE extension you installed must have network access to the range of IP addresses you specify.
Discovery Location - Your DGE extension was assigned a unique location when it was installed. Select it from the drop-down list. Most private networks use the same range of IP addresses. This is how Traverse identifies which network you want to run Network Discovery on.
SNMP Community Strings/Credentials - Optionally enter an SNMP read community name for SNMP-enabled devices on your network. The default community name for SNMP v1 & 2c enabled devices is public. Optionally enter a credential for SNMP v3 enabled devices.
VMware Hypervisor Credentials - Optionally enter a VMware credential to discover additional information about VMware hypervisors.
Advanced Options - Ignore these advanced features for your first run of network discovery.
