Assign Standard Monitor Tests to Discovered Devices

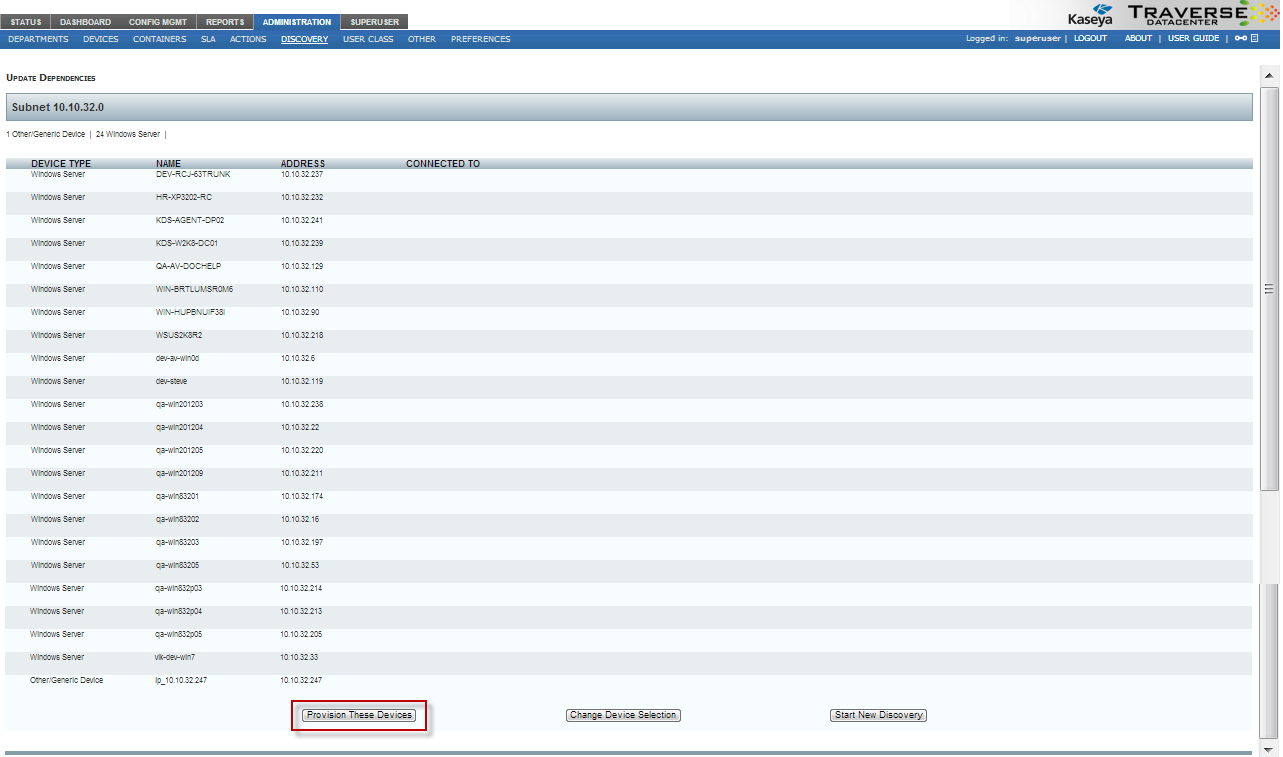

1. A list of discovered devices is displayed. Click the Provision These Devices button.

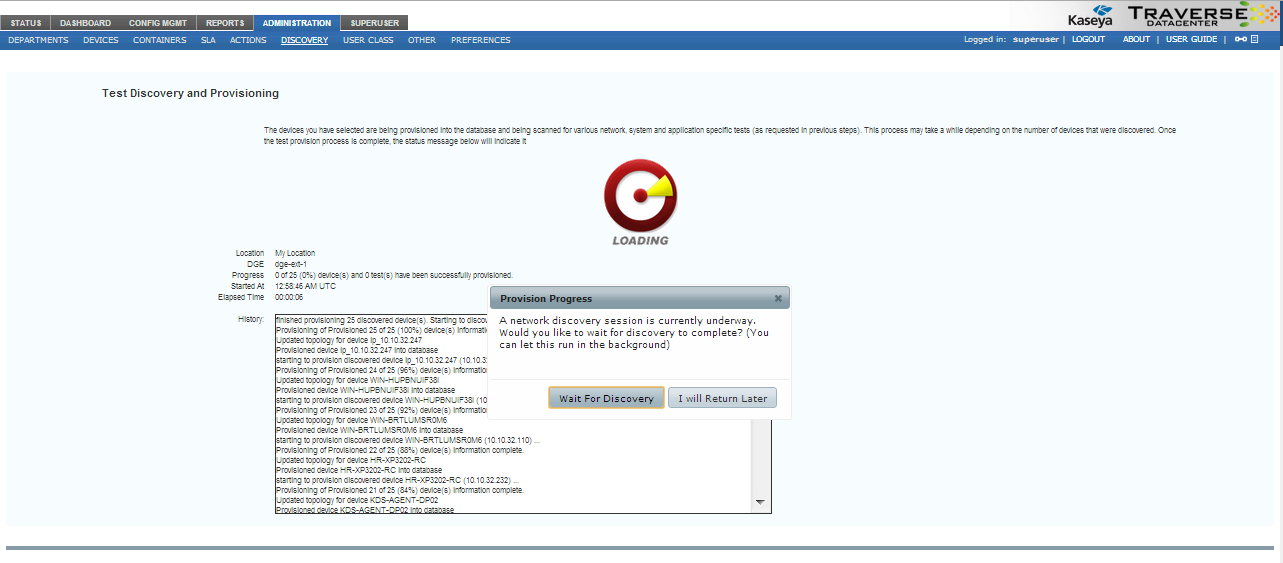

2. Wait for Traverse to provision typical monitoring tests for each of your discovered devices.

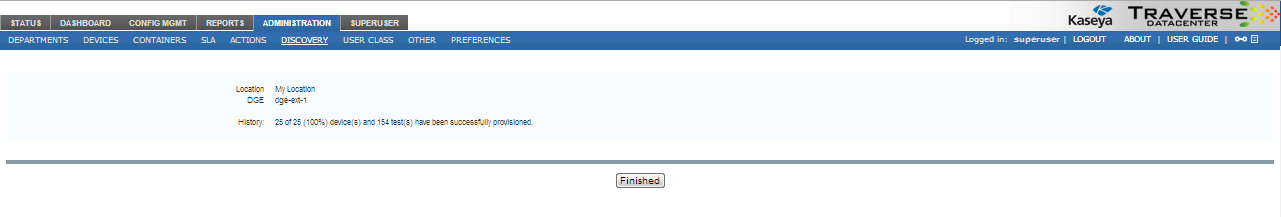

3. Click the Finished button to continue.



4. Traverse automatically displays the Status > Panorama page.

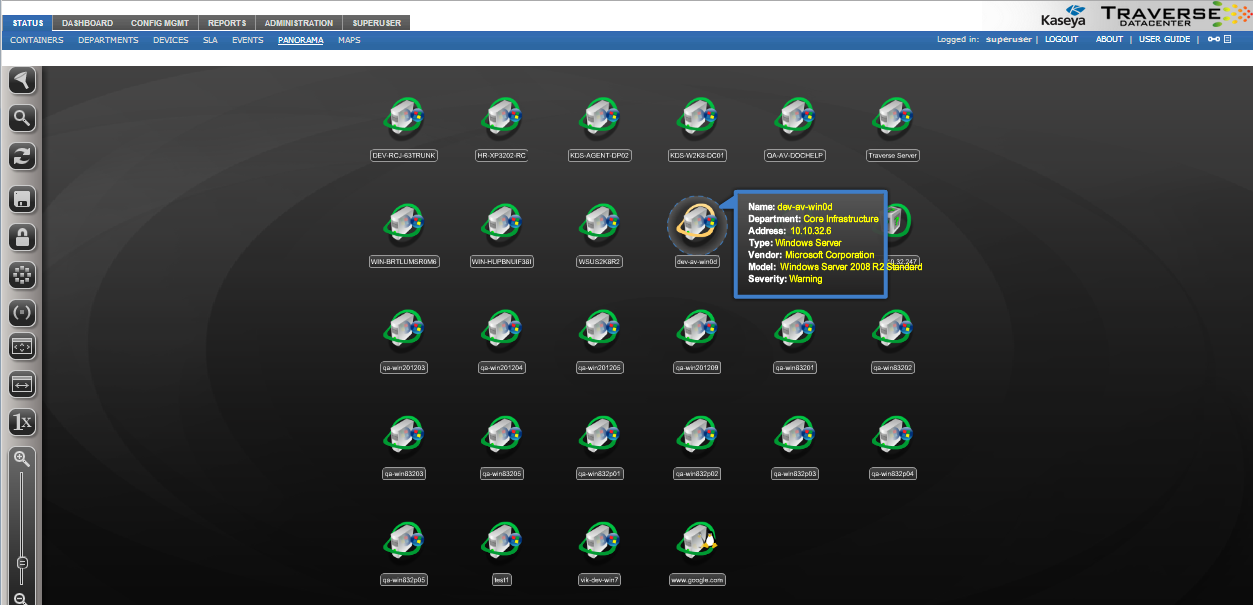

   • Watch Traverse construct a topology of monitored devices on your network. This might take a while.
   • Lines are drawn between related nodes on the network. If no lines are shown, your network discovery session did not include the discovery of a router or any other kind of hub, as shown in the image below.
   • Hover the cursor over any node to display a description of the node.



5. Click the hyperlinked name of a device to open the Test Summary page for that device.

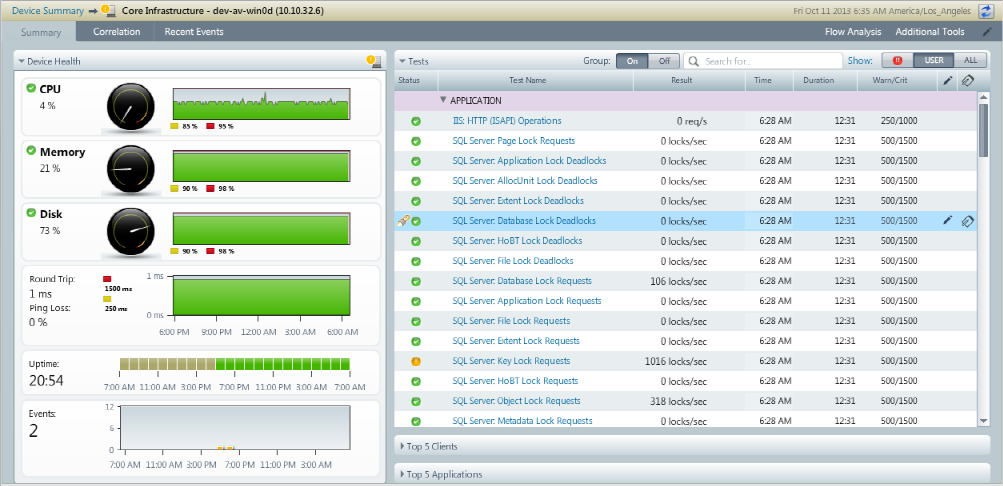

6. The Device Summary page displays the status of the device you selected.



   Congratulations! You're monitoring the network!

   When your ready, explore additional Traverse features using:

   • Basic Configuration
   • Advanced Features
