Page Layout

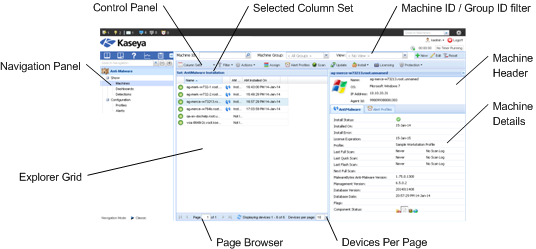

The layout of the Machines page comprises the following design elements:

• Navigation Panel - Used to navigate to pages within the Anti-Malware (Classic) module.
• Explorer Grid - Each managed machine in the VSA is listed in this panel.
  • Page Browser - If more than one page of devices displays, pages forwards and back.
  • Rows Per Page - Sets the number of devices displayed per page: 10, 30 or 100.
• Machine ID / Group ID Filter - Filters the list of machines ID listed in the Explorer Grid.
• Control Panel - Executes tasks, either for the entire Explorer Grid or for a single selected machine.
• Details Panel - This panel displays the properties and status of a single machine.
  • Header - Identifies the selected machine in the Explorer Grid.
  • Anti-Malware (Classic) - Displays a summary of the Anti-Malware (Classic) status of a machine.
  • Alert Profiles - Lists the alert profiles assigned to a machine.
