Weblogic Configuration

1. Enter the following settings in startWeblogic.cmd:

   Set JAVA_OPTIONS=%JAVA_OPTIONS%
   Dcom.sun.management.jmxremote
   Dcom.sun.management.jmxremote.ssl = false
   Dcom.sun.management.jmxremote.authenticate = false

   For the appropriate application server:

   \bea\weblogic92\samples\domains\wl_server\bin\startWebLogic.cmd

   where wl_server is the name of the server that you want monitor.

2. Enter the username and password: (same password when connecting from the client)

   -Dweblogic.management.username = %WLS_USER%

   -Dweblogic.management.password = %WLS_PW%

3. Start the Admin Server by selecting Start > Programs > BEA Products > WebLogic Server 9.2. The Server started in RUNNING mode message displays.
4. Launch the Administration Console (http://localhost:7001/console). The login page displays.
5. Enter weblogic as the username and password click Sign In. The Administration Console displays.
6. Start the Managed Server as described in the following:

   http://localhost:7001/console-help/doc/en-us/com/bea/wlserver/
   core/index.html

7. Start the Node Manager. Run \bea\weblogic92\server\bin\startNodeManager.cmd localhost 5556 or double-click startNodeManager.cmd.

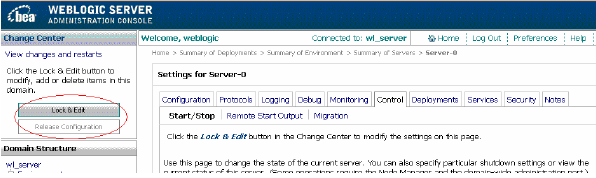

8. Use the Lock & Edit option in the admin console to make configuration changes.



   Note: The included weblogic jar files are for weblogic 9.2.

9. Add the classpath for wljmxclient.jar and wlinitialcontext.jar in the monitor.lax file. These .jar files are in the fcots/lib directory.
   • Download: http://commerce.bea.com/showallversions.jsp?family=WLS
   • References: http://edocs.bea.com/common/docs92/install/index.html

Client-side Connection

Monitor monitor configuration parameters:

1. Select weblogic as the application type.
2. Enter the following:

   port = 7001

   username = weblogic

   password = weblogic
