Accessing Device Information

Each device is represented by an icon that displays the name of the device. The color of the halo around the icon represents the status of the device.

Color	Status
Aqua	Unconfigured
Purple	Suspended
Green	Ok
Grey	Transient or Unknown
Light Blue	Unreachable
Yellow	Warning
Orange	Critical
Red	Fail

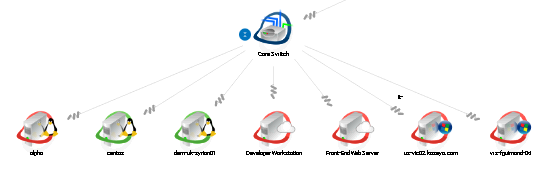

Device icons by device type

- Windows Server icon;
- Linux Server icon;
- Network switch icon;
- Router icon;
- Firewall icon;
- Hypervisor icon;

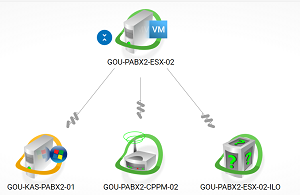

- - Hypervisor along with the VM hosted on it;
- Unknown device type icon is used when the Device/OS Model/ Version is unknown;
- Load Balancer device icon;
- Storage device icon;

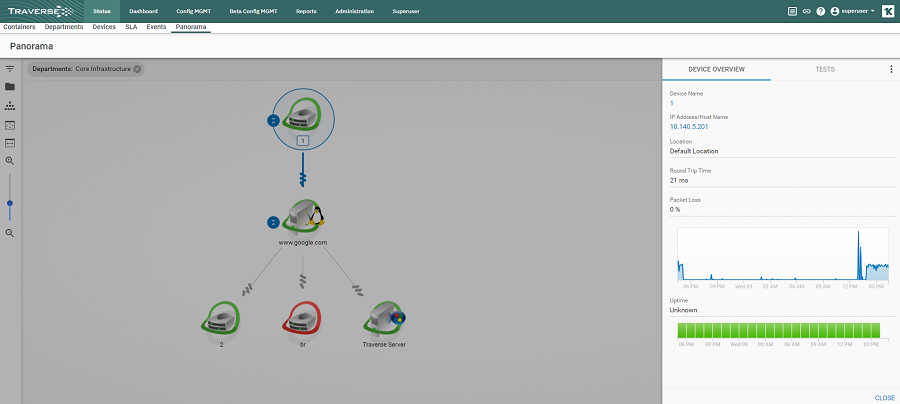

Device Overview tab

Click the name of a device to open the Device Overview for that device. Properties displayed include

Device Name
IP Address/Host Name
Location
Device/OS Vendor (if available)
Device/OS Model/Version (if available)
Plus selected metrics for that device

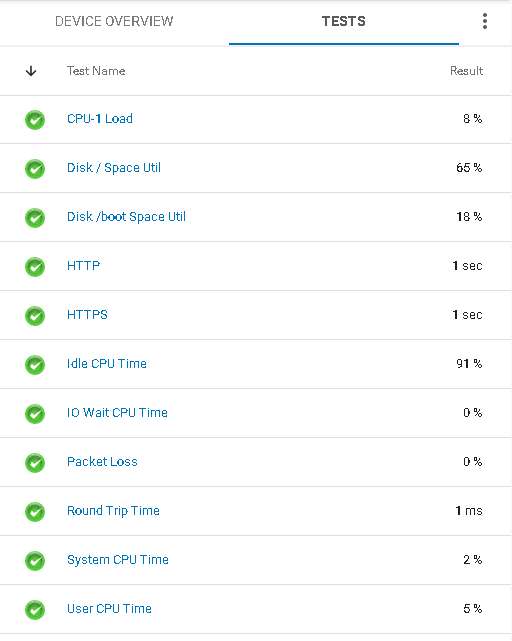

Tests tab

Another tab lists the Tests provisioned for that device. Click any test to display the Chart View tab for that test on the Status > Devices page.

Word 50% / HTML 50%

Device Context-Sensitive Options

When the Device Overview displays, you can click the options icon to access context-sensitive options.

Word 80% / HTML 80%

The Launch Live Connect option displays for devices that have a VSA agent installed on them. You'll notice they have a lightning bolt icon next to them in Panorama views.
