Navigate to Status tab to display a world map. Unlike the Status > Panorama views, devices are not included on any maps by default.
The bar at the left-hand side of the Maps view provides buttons that you can use to create and configure your maps. The function of each button appears in hover text when you place the mouse cursor over the button.

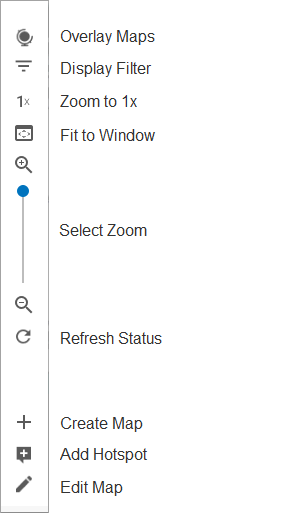

Maps Configuration Buttons
Button Bar Options
Overlay Maps - Lists available maps. Click the name of a map to open it in the map display area.
Display Filter - Filter or highlight icons shown on the map by status.
Check a check box for each device status that you want to see on your map.
Click a highlight option for each status. Icons with that status will appear highlighted.
Zoom to 1x - Resizes the map to the default zoom level.
Fit to Window - Resizes the entire image to fit within the space available in your browser window.
Refresh Status - Updates the status of all devices in the display. By default, the status automatically updates according to the refresh interval specified in the user preferences.

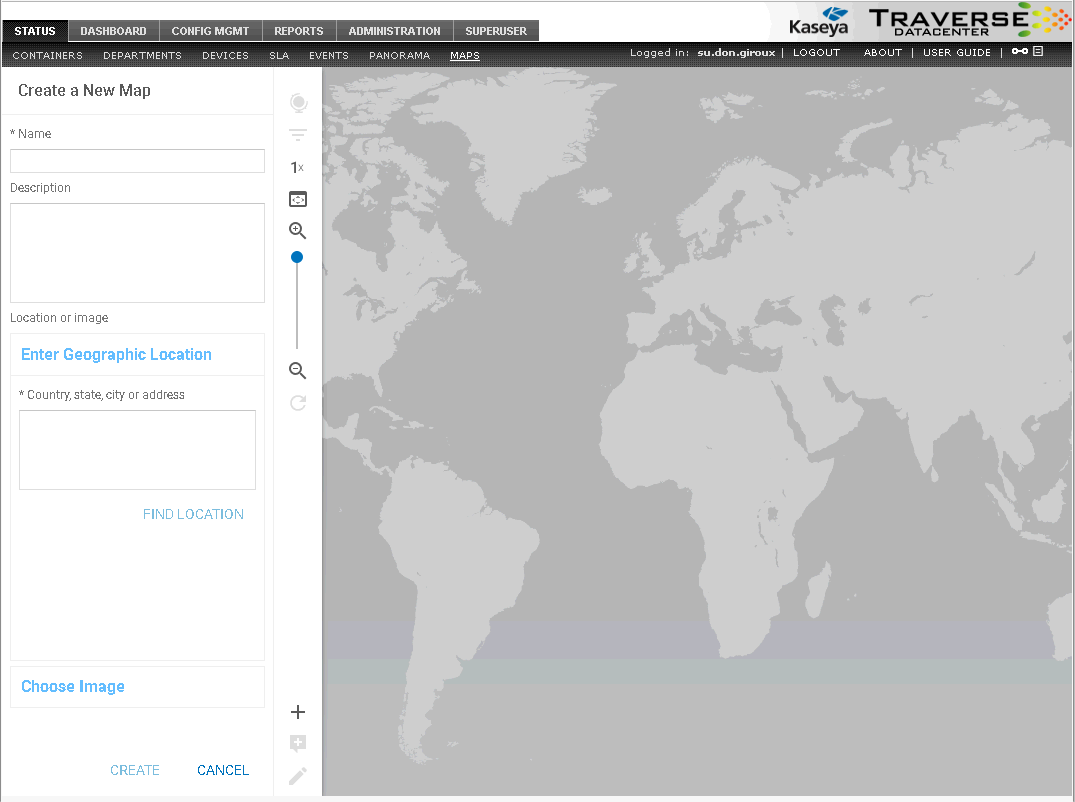

Create Map - Creates a new map based on either a geographical location or an image that you upload.
Edit Map - Edit the Name and Description of the map you are currently viewing. Or enter edit mode to modify the properties or location of a hotspot on the map.
Add Hotspot - Click to add devices, containers, or other maps to the map you are currently viewing.
