JMX Test Parameters

The Java Management Extension (JMX) monitor collects availability and performance metrics of Java applications, including but not limited to, ActiveMQ, Apache, BEA WebLogic, Hadoop, JBoss, Jetty, JVM, Oracle, and SwiftMQ. Similar to SNMP and WMI monitors, various applications, such as Tomcat, expose relevant metrics through the JMX monitor. See JMX Configuration for App Servers.

Note: If you have a firewall, you might need to update your firewall rules since return JMX connections from the Java application are made at randomly high TCP port numbers.

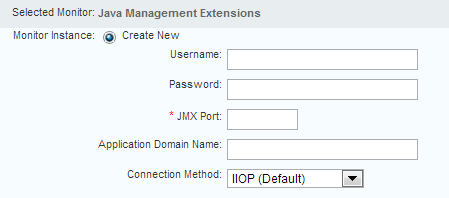

Credential/Configuration Settings

Username - A username, if authentication is required by the Java application.
Password - A password, if authentication is required by the Java application.
JMX Port - The port number specified by the Java application.
Note: JMX support is enabled by default on Traverse components, including the version of Apache Tomcat installed on the BVE. All components support the RMI protocol and use the following TCP ports:
- Web application: 7691
- Data Gathering Engine: 7692
- Event Collection Agent: 7693
Application Domain Name - The domain name in which the application resides. Leave blank if you don't know the application domain name.
Connection Method - Select either RMI , RMI (JRMP) or T3 (BEA WebLogic) to discover metrics from BEA WebLogic (Java Application Server).

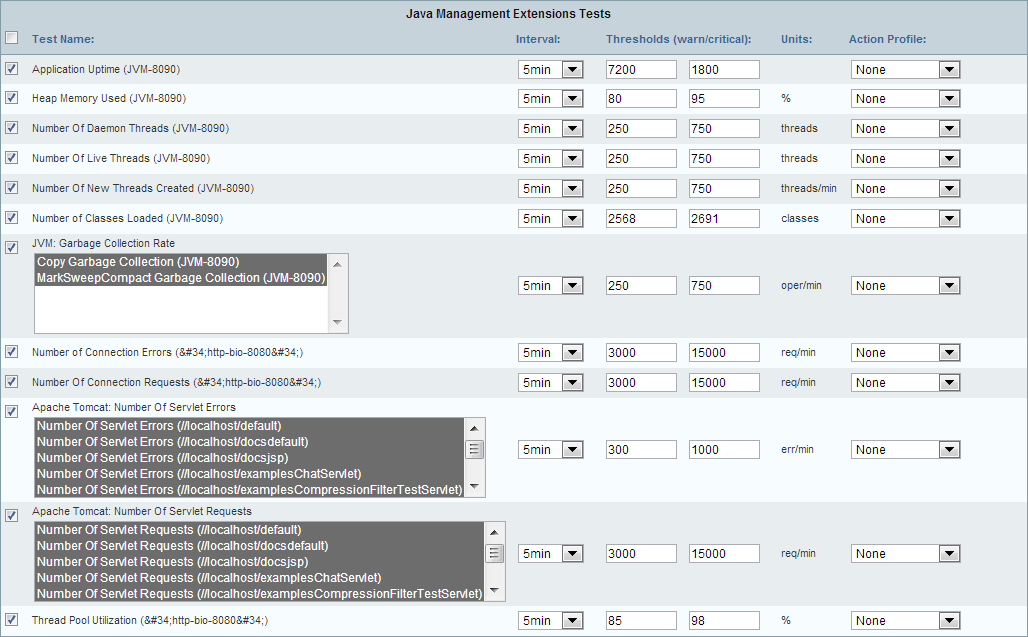

Test Parameters

Word 80% / HTML 80%

Field	Description
Test Name	Enter/modify the name of the test.
Interval	Use the drop-down menu to specify the interval at which Traverse executes the test.
Thresholds (warn/critical)	Enter/modify the threshold levels that cause the test to change to (a state of) Warning or Critical, respectively.
Action Profile	Use the drop-down menu to select an action profile for the test. See Administrator Configured Action Profiles and Thresholds for more information.
