WMI Test Parameters

Traverse can monitor Windows hosts using the native Windows Management Instrumentation (WMI), which is installed by default on all Windows 2000, XP and 2003 or later versions, and available as an add-on for other Windows hosts. This includes virtual machines operating under Microsoft Virtual Server 2005.

Note: See Configuring Windows WMI for assistance on how to enable WMI on hosts.

Note: WMI tests and SNMP tests support an additional feature called Test Parameter Rediscovery.

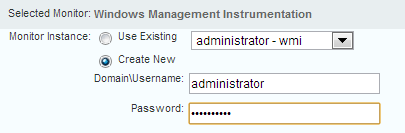

Credential/Configuration Settings

Domain\Username - Enter a domain administrator-level username or local administration-level user name.
- Domain username format - DOMAIN1\username
- Local username format - .\username
  Enter an administrator username in .\username format to access Windows systems that do not belong to a Windows domain. Do not use the localhost\username format.
Password - Enter the corresponding password.

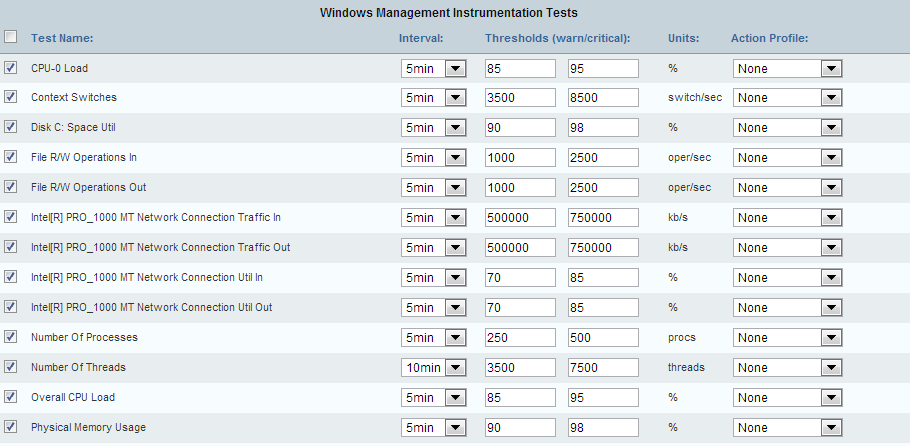

Test Parameters

Word 80% / HTML 80%

Field	Description
Test Name	Enter/modify the name of the test.
Interval	Use the drop-down menu to specify the interval at which Traverse executes the test.
Thresholds (warn/critical)	Enter/modify the threshold levels that cause the test to change to (a state of) Warning or Critical, respectively.
Action Profile	Use the drop-down menu to select an action profile for the test. See Administrator Configured Action Profiles and Thresholds for more information.
