Fault Level Reports generate one or more of the Top Ten, Number of Events Distribution, Event Duration Distribution, Number of Events, for the particular tests of chosen test types for a device.

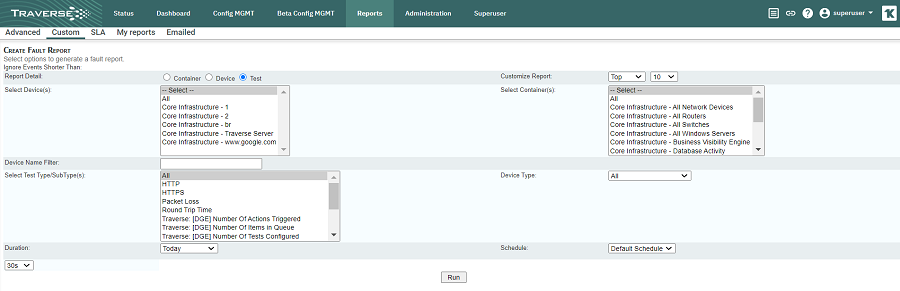

The following table lists the parameters on the Create Fault Report page.
Parameter |
Description |
Report Detail |
Select Container, Device, or Test. Depending on the Report Detail you select, various parameters are disabled in the Generate Fault Reports page. |
Customize Report |
Use the drop-down menu to select either the Top (most) or Bottom (fewest) 10, 25, 50, or 100 events. This option does not apply to the graphical view of the report. |
Select Device(s) / Select Container(s) |
Select a container or a device. You can use the CTRL and SHIFT keys to select multiple items. |
Device Name Filter |
Enter a specific device name or regular expression (for example, nyc_router*. This displays all devices with |
Select Test Type/Sub Types |
Select a test type. You can use the CTRL and SHIFT keys to select multiple items. |
Device Type |
Use the drop-down menu to select the type of device. |
Duration |
Select a date range from the drop-down menu. Selecting |
Schedule |
Limits the data included in the report to the schedule selected. |
Ignore events shorter than |
Use the drop-down menu to prevent the report from generating events that last less than 30 seconds, 1 minute, 5 minutes, or 15 minutes. |
Click Submit to execute the report.
