Standard SNMP Monitoring

Discovery > Networks > By Network > New or Edit

Discovery > Networks > Topology Map > Enable Monitoring

Standard SNMP Monitoring provides an ability to deploy simple SNMP monitoring to network infrastructure (non-agent capable assets) and printers.

To deploy simple SNMP monitoring for the new or existing Network:

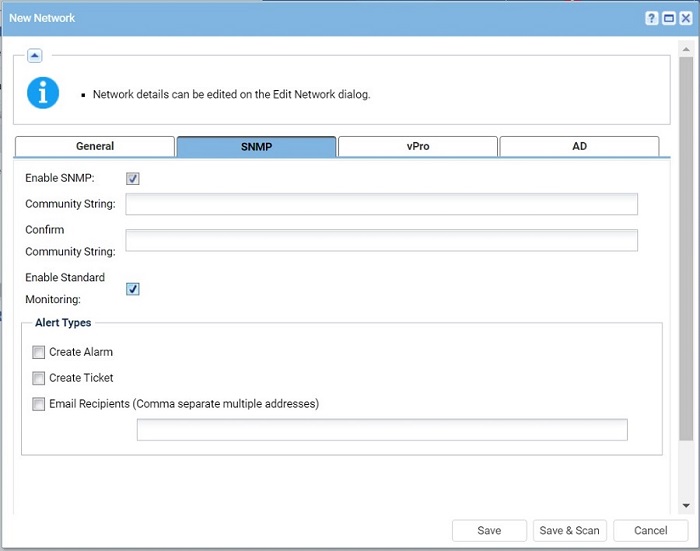

1. Navigate to Discovery > Networks > By Network > New or Edit > SNMP tab;
2. Check the Enable SNMP checkbox;
3. Check the Enable Standard Monitoring checkbox;
4. Check ATSE action:

• Create Alarm - If checked, creates an alarm.
• Create Ticket - If checked, creates a ticket.
• Email Recipients - If checked, notifies email recipients specified in Email Addresses.


1. Click Save.
2. If you are creating a new network, click Save & Scan. Once the scan is finished it will automatically enable all SNMP-enabled devices for the selected Network.

Note: For the existing network, changes will take place at the time of the next scan and only will be applied to newly discovered devices.

To deploy simple SNMP monitoring for an individual device within the discovered Network with SNMP devices:

1. Navigate to Discovery > Networks > Topology Map;
2. Right-click on SNMP node, select Enable Monitoring/Edit Monitoring;
3. Check ATSE action:

• Create Alarm - If checked, creates an alarm.
• Create Ticket - If checked, creates a ticket.
• Email Recipients - If checked, notifies email recipients specified in Email Addresses.

1. Click Save.
2. Right-click on the SNMP node, then click Disable Monitoring to disable monitoring on this SNMP device.
