Network Diagram

Network Discovery > Devices > Collector > Open Diagram

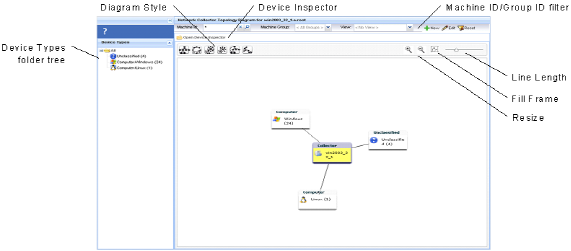

A network topology diagram displays machines discovered by a single collector in a popup window.

• Select the Collector icon next to a collector device from the Explorer Grid.
• Click any device box displayed in the diagram, then select Open Device Inspector to display the Device Inspector for that device.
• Use the Resize, Fill Frame and Line Length tools to adjust the display of the diagram.
• Filter the machines displayed using the machine ID/group ID filter.
