Static Device Templates

A Static Device Template is a template that contains a group of tests with customized parameters that you can then apply to multiple target devices so that each of the target devices is provisioned with the same tests. This functionality supports a one-time application of the tests to the target devices, and once the tests are provisioned for a target device, no association is maintained between the target device and the source template.

Creating a Static Device Template

  1. Create tests for a device as described in Managing Standard Tests.
  2. Navigate to Administration > Devices, and then click Tests for the device you configured in Step 1.
  3. Click Create Device Template.
  4. Enter a Template Name.
  5. Ensure the Static list of tests option is selected.
  6. If the Linked to this device option is selected, a new Linked Device Template is created that has does not have any devices assigned to it yet.
  7. Enter a Description that describes the tests in the template for this device.
  8. Click Apply.

    Word 80% / HTML 80%

Updating or Deleting a Static Device Template

  1. Click Create Device Template in the Manage Tests page.
  2. Click Update an Existing Template, select the template and either update the name and/or description of the template or click Delete Device Template to remove the template from Traverse.

Applying a Static Device Template to an Existing Device

  1. Navigate to Administration > Devices.
  2. Click Tests on the line for the device you want to add tests for.
  3. Click Create New Standard Tests.

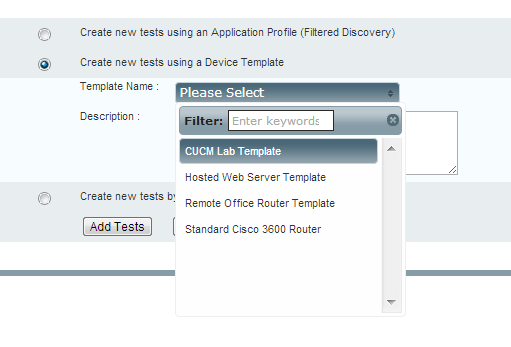

  4. Select the radio button for Create new tests using a Device Template.
  5. Select a device template from the drop down list.
  6. The drop-down lists displays both Linked Device Templates and Static Device Templates.

    Click Add Tests.
    Word 80% / HTML 80%

Creating a New Device Using a Static Device Template

  1. Navigate to Administration > Devices.
  2. Click Create A Device.
  3. Provide the required information, ensuring that the Create New Tests After Creating This Device check box is selected.
  4. Click Create Device.
  5. Select the radio button for Create new tests using a Device Template.
  6. Select a device template from the drop down list.
  7. Click Add Tests.
